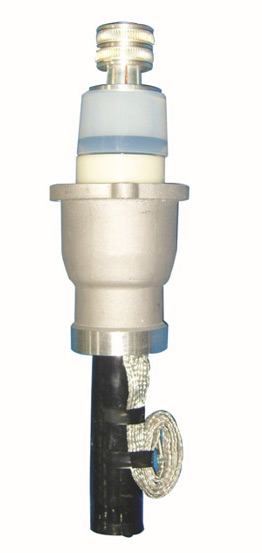

Inner Cone Type Plug Terminal
Product Introduction
Inner cone type plug terminal uses cone type pluggable technology; it is suitable for 27.5kV single-phase electrified railway traction power supply GIS switch cabinet, transformer, high voltage motor, generator and so on. The stress cone adopts the imported liquid silicone rubber which is suitable for indoor and outdoor application.
Inner cone terminal includes all insulation parts required by electric field stress control and shield and plugging metal parts; it is not subject to the surrounding environment, is fully sealed and free of maintenance, and can be used in harsh environmental conditions.
Product Features
It has an integral structure, integrated packing and fast installation, and can adapt to multiple cable cross-sections; It has a small and compact structure, and reliable creepage distance can be formed through optimal structural design;The inner cone plug-in metal connecting is convenient for installation, operation, maintenance and test onsite;
Maximum rated current: 1250A.
Comply with the Following Standards:
GB/T 12706.4－2008
IEC 60502-4：2005
DIN 47637、EN 50181

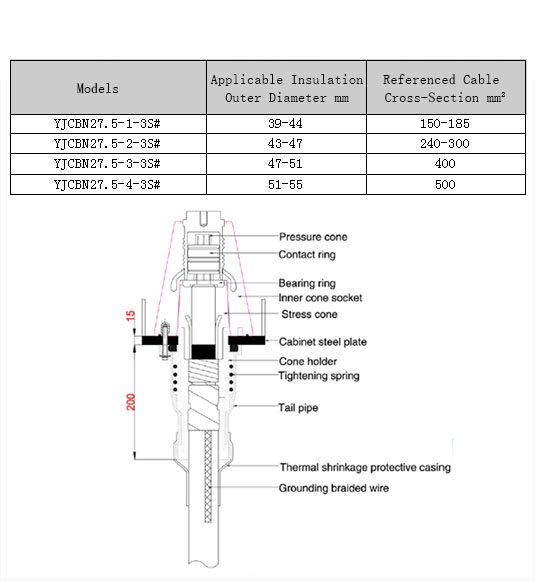

Installation and Outline Dimensions
