Porcelain Bushing Oil-Filled Outdoor Terminal
Product Introduction
Product Models and Scope of Application:YJZWG4,
indoor and outdoor applications,
environmental contamination class: IV
It applies to nominal cable cross-section: 66kV, 110kV：240～1600mm²/220kV:240-
2500mm²
Product Features
1. The product top adopts three-layer sealing structure, the bottom uses flexible sealing, and this sealing structure has won national invention patent;
2. The rubber stress cone can be pre-expanded in factory or expanded onsite, which is easy to install;
3. The porcelain bushing is made of high-strength inorganic material electroporcelain, which has the characteristics of great weather resistance, leakage resistance, galvanic corrosion resistance and hydrophobic property;
4. The upper and lower flanges are made of high-strength aluminium alloy material after anodic oxidation treatment, which can ensure the mechanical, sealing and weather resistance performance of product;
5. The bottom supporting insulator can be flexibly changed without lifting or removing the terminal.

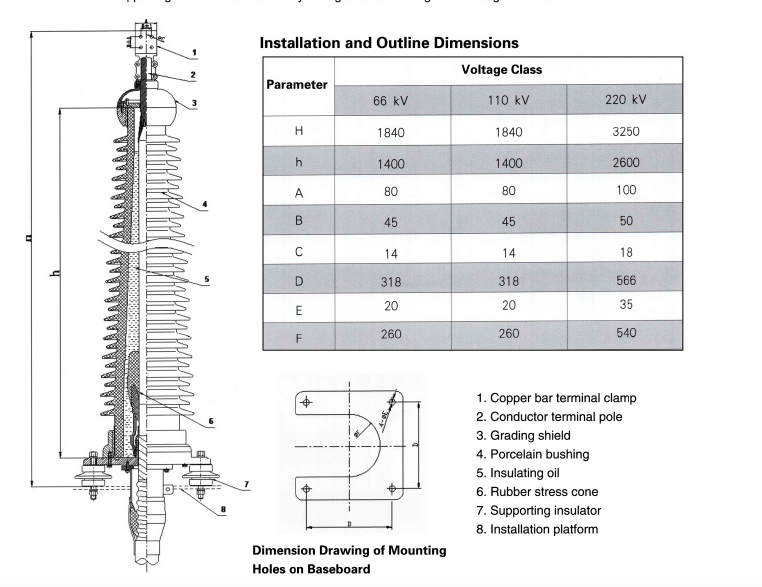

Installation and Outline Dimensions
