Silicone Rubber Overall Prefabrication Dry Outdoor Terminal
Product Introduction
Product Voltage Class： 66kV, 110kV
Product Models and Scope of Application: YJZWG4
Indoor and Outdoor Applications
Environmental Contamination Class: IV
It applies to nominal cable cross-section: 240~1600mm²
Product Features
1. The installation method is flexible, and it can be pre-expanded in factory or expanded onsite, which is easy to install;
2. It has big and small umbrella skirt structure, with strong self-cleaning ability;
3. The product has overall pre-molding and it has prevented segmented adhesion of umbrella skirt adopted by products of similar type, which might affect the electrical performance;
4. The product has adopted double-metal screen cover on top +o-shape seal ring structure for sealing;
5. The product has flexible structure, which can be used in wide angles, and it is not affected by the installation and application method.

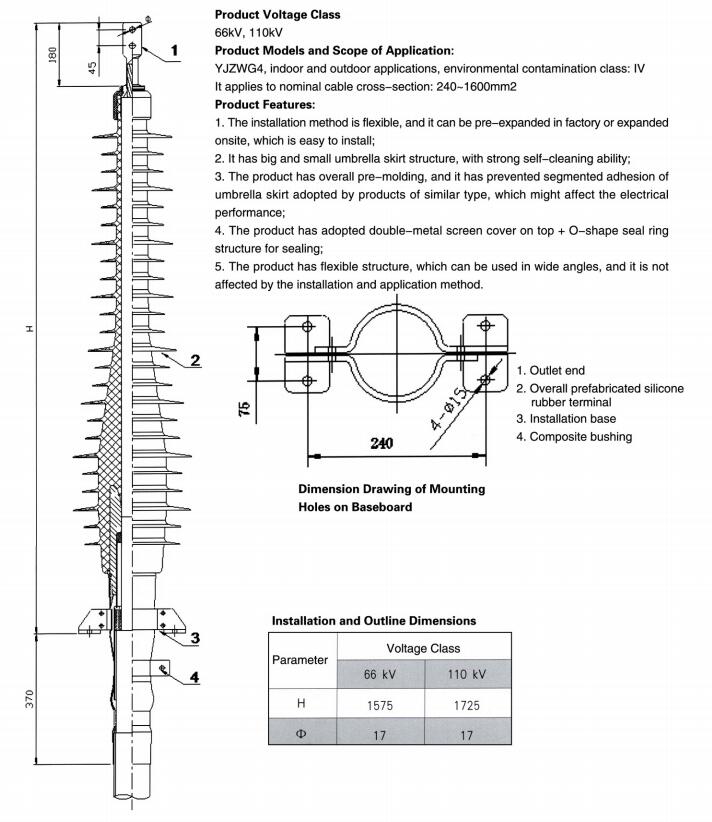

Installation and Outline Dimensions
