Full-Dry GIS Terminal
Product Introduction
Product Voltage Class:66kV, 110kV, 220kV
Product Models and Scope of Application:YJZGG
Indoor and Outdoor Applications
It applies to nominal cable cross-section:
66kV, 110kV: 240~1600mm²
220kV: 240~2500mm²
Product Features
1. It has adopted imported spring tightening structure on top to ensure more even and constant stress on the overall stress cone interface, cable insulation and epoxy bushing interface.
2. The whole terminal has full-dry structure, which does not need adding any insulation filling. It can avoid the swelling problem by immersing prefabricated stress cone into the insulation filling, which can improve the service life of stress cone.
3. The plug-in contactor adopts component imported from Germany, which completely satisfies the design requirements for electric connection performance and heat dissipation performance.

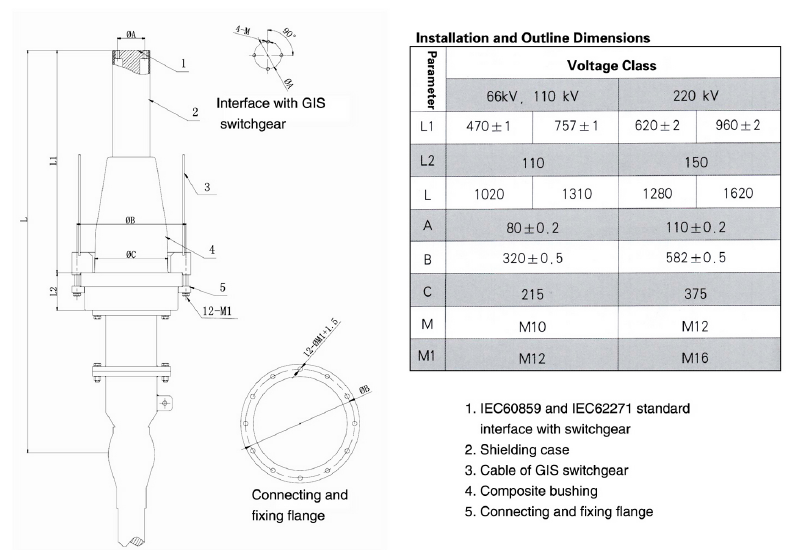

Installation and Outline Dimensions
