Silicone Rubber Overall Prefabricated Insulated Joint/Straight Joint
Product Introduction
Product Voltage Class:66kV, 110kV, 220kV,
Product Models and Scope of Application:YJJJI2 (insulated joint), YJJTI2 (straight joint),
indoor and outdoor applications
It applies to nominal cable cross-section: 66kV,110kV: 240~1600mm2/220kV: 240~2500mm²
Product Features
1. The installation method is flexible, and it can be pre-expanded in factory or expanded onsite, which is easy to install;
2. The overall prefabricated product adopts three-layer composite structure, and the outer shielding layer adopts composite technology;
3. The polyurethane sealant was filled into the copper shell, and it provides great sealing performance and high strength;
4. In accordance with the onsite conditions and customer’s requirement, fiberglass shell can be added outside of copper shell.

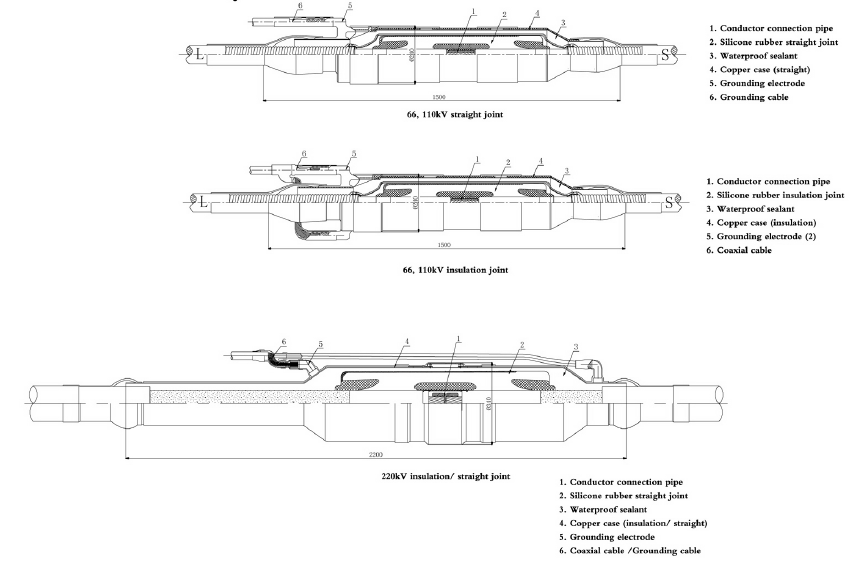

Installation and Outline Dimensions
