Composite Bushing Oil-Filled Outdoor Terminal
Product Introduction
Product Voltage Class: 66kV, 110kV, 220kV,
Product Models and Scope of Application:YJZWCF4,
indoor and outdoor applications,
environmental contamination class: IV
It applies to nominal cable cross-section: 66kV, 110kV：240～1600mm²/220kV:
240～2500mm²
Product Features
1. The product top adopts three-layer sealing structure, the bottom uses flexible sealing, and this sealing structure has won national invention patent;
2. The rubber stress cone can be pre-expanded in factory or expanded onsite, which is easy to install;
3. The silicone rubber composite bushing is made of epoxy fiber glass pipe, the outside is covered with silicone rubber through vacuum-pumping and injection, and in this way, it can ensure there is no gap and guarantee the high mechanical strength;
4. The silicone rubber composite bushing has all the merits of porcelain bushing; in addition, it is light with great mechanical performance, and it can prevent the risk of explosion.

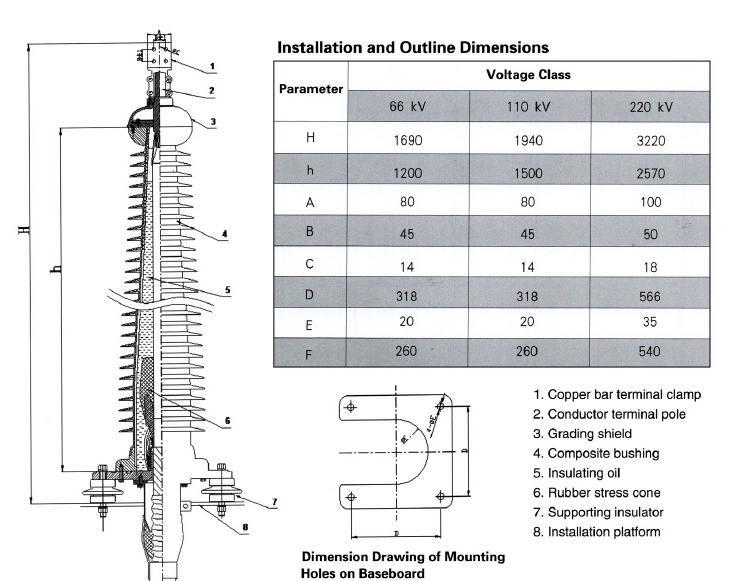

Installation and Outline Dimensions
