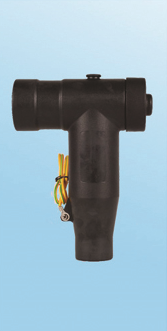

Screen Front/Rear Connector
Product Brief
10kv: YJSQP-15/630(Screen Front)、YJSHP-15/630(Rear Connector)
20kV: YJSQP-24/630(Screen Front)、 YJSHP-24/630(Rear Connector)
30kV: YJSQP-30/630(Screen Front)、YJSHP-30/630(Rear Connector)
Applicable Section:25~500mm²
Cores Number: single core, three cores
Product Features
1. It used imported EPR(ethylene propylene rubber) as the material with great performance;
2. It has adopted the three-layer composite technology and advanced international rear injection insulation layer technique;
3. It has a small and compact structure, which can satisfy the installation requirement of ring main unit and branch box with different sizes;
4. It uses separated bolts and nuts, which does not require any special tools or heating, and it is easy to install, which can reduce manual work;
5. The rear connector is designed in accordance with the screen front one. No additional connector is needed. The installation length is short, which is applicable within small space.
6. The product can be used in cable distribution box, ring main unit and box transformer substation It can be used in the sealed connection for Φ46/ Φ56/91. 5/M16 sockets;
7. The rear connector is installed behind the front connector, it can be connected to the front connector with conductive connecting rod, which can realize multiple-branch power supply, and it also has tightening force and reliable through-flow.
