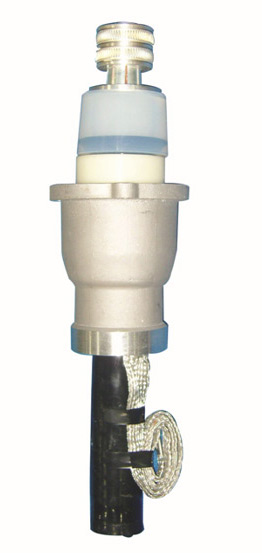

Inner Cone Plug-in Terminal
Product Brief
Product model:
10kV：YJCBN-15
20kV：YJCBN-20
35kV：YJCBN-35
Applicable section: 25~630mm²
Cores number: single core, three cores
Product Features
1. It has an integral structure, integrated packing and fast installation, and can adapt to multiple cable cross-sections;
2. It has a small and compact structure, and reliable creepage distance can be formed through optimal structural design;
3. The inner cone plug-in metal connecting is convenient for installation, operation, maintenance and test onsite;
4. The terminal, bushing, insulation plug, test terminal and other accessories are provided;
5. Maximum rated current: 1250A.
Product Applications:
It applies C-GIS gas-insulated switchgear, switch cabinet and transformer.
It satisfies the following standards:
GB/T 12706.4-2008
IEC 60502-4: 2005
DIN 47637, EN 50181
